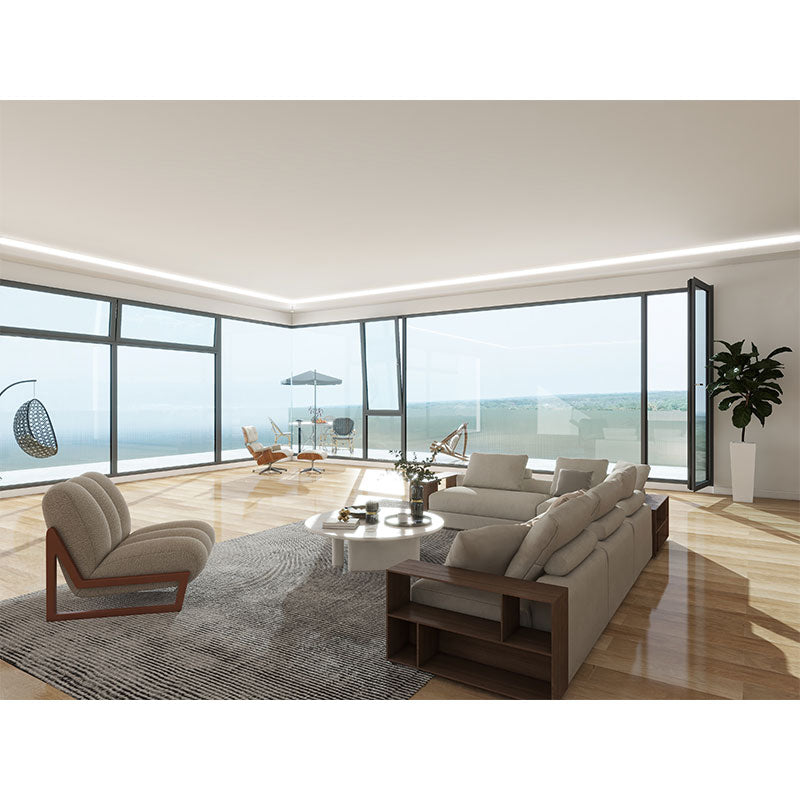

It has successfully adapted to various home scenarios, met people's diverse functional needs, and ranked in the forefront of "being chosen" with its visual and performance advantages.
(B)Product feature:
★Long-lasting Thermal Insulation and Sealing:
The frame is filled with polyethylene foam cotton for thermal insulation and sound insulation. It uses a high-insulation and continuous one-piece central sealing strip with a honeycomb foam structure. Combined with a 30mm multi-chamber PA66 polyamide thermal insulation strip, the entire window forms a complete sealing system, effectively insulating and heat-preserving.
★Upgraded Safety Assurance:
The product selects a high-load-bearing hidden hinge with multi-point linkage and multi-locking points for anti-theft and anti-tampering, upgrading anti-misoperation. The turn-tilt window is equipped with metal corner guards for safety and reliability.
★Optional Dedicated Drainage:
Optional lower frame hidden drainage components are available, developed in conjunction with the same profile structure, with customized sealing strip molds and dedicated drainage conduits to achieve true drop type drainage, preventing water infiltration caused by long-term erosion and soaking of the window sill.
★Waterproofing Based on Rain Screen Principle:
The internal and external cavities are equalized, utilizing the pressure difference between the inside and outside to achieve waterproofing and drainage. This keeps both sides of the outer surface at equal pressure, preventing rainwater intrusion while assisting in structural heat dissipation, condensation control, and long-term durability.

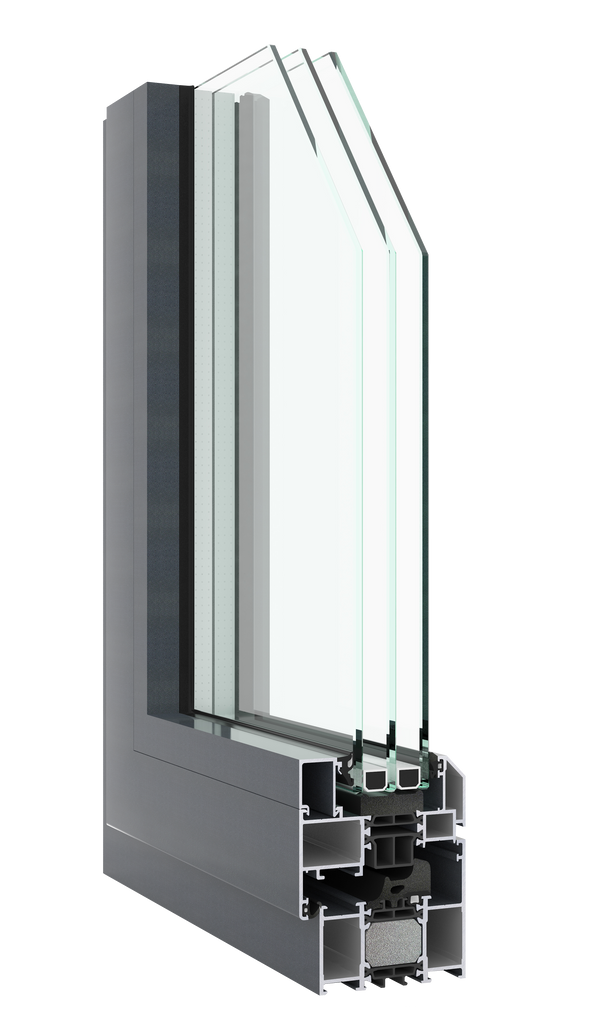

★Aluminum Profile: 6060/T66:
European Standard ultra-high precision grade 6060-T66 profiles for the main material. The surface is treated with industrial-grade sandblasting,ensuring safety,durability and long-term weather resistance.
(C)Technical performance:
★Opening methods:
Inwards tilt/tilt-first,inwards opening/turn, turn-tilt
★Carrying Components:
90°/180° Hidden turn-tilt Hardware Assembly
★Locking Components: Maximum "4+6", 10-Point Locking Design
★Maximum Load Capacity of Opening Panel: 80kg/130kg
★Optional "Metal Corner Guards"
★Visible Width of Profile:
Frame Profile: 55mm
Sash Profile: 34mm
Middle Mullion Profile: 79mm
Visible Width of Mullion and Sash: 118mm
Visible Width of Frame and Sash: 94mm
